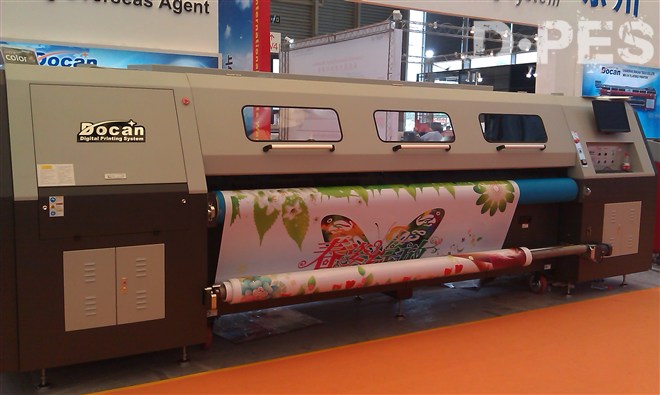

Technical Specification of Docan UV3210
|
Model
|
UV3210 UV Hybrid Printer
|
Printing Size
|
3.2m*unlimited length
|
Working Platform
|
Vacuum sucking and automatic height adjustment system
|
Printhead
|
Konica Minolta 1024-14PL ( drop-on-demand piezo electric )
|
Printhead Control
|
Printhead temerature and voltage are adjustable in software
|
Drying System
|
U.K. Primarc Lamp ( curing ink instantly )
|
Ink Type
|
UV environmental protection ink
|
Ink Consumption
|
1 m2 printing consumes 10 ml ink, costing about 1 $
|
Printing Color
|
C M Y K + Lc Lm + W
|
RIP Software
|
PhotoPrint or Onyx or Caldera
|
Color Management
|
ICC based color, curves adjustment, density adjustment
|
Picture Format
|
TIFF, JPEG, EPS, PDF, POSTCRIPT 3
|
Resolution
|
720 dpi x 1080 dpi ( 6 Pass )
|
720 dpi x 1440 dpi ( 8 Pass )
|
Printing Speed
|
6 Pass up to 21 sq.m/hr
|
8 Pass up to 16 sq.m/hr
|
Printing Material
|
glass, wood, PVC, acrylic, MDF, aluminum, metal, leather, tile, etc.
|
Printing Artwork Life
|
Outdoor 5 years, indoor 10 years
|
Warranty
|
One year
|
Power Supply
|
50/60HZ AC220V > 30A
|
Working Condition
|
Temperature 20-28 degrees, Humidity 40% - 60%
|
Machine Size
|
4.89mx2.89mx1.81m
|
Printer Weight
|
3125kgs
|
Packing
|
Inner packed by anti-rain & anti-rust plastic bubble film; outer packed by solid wooden crate.
|
Installation
|
We will send technician to customer workshop to install machine and conduct training
|
